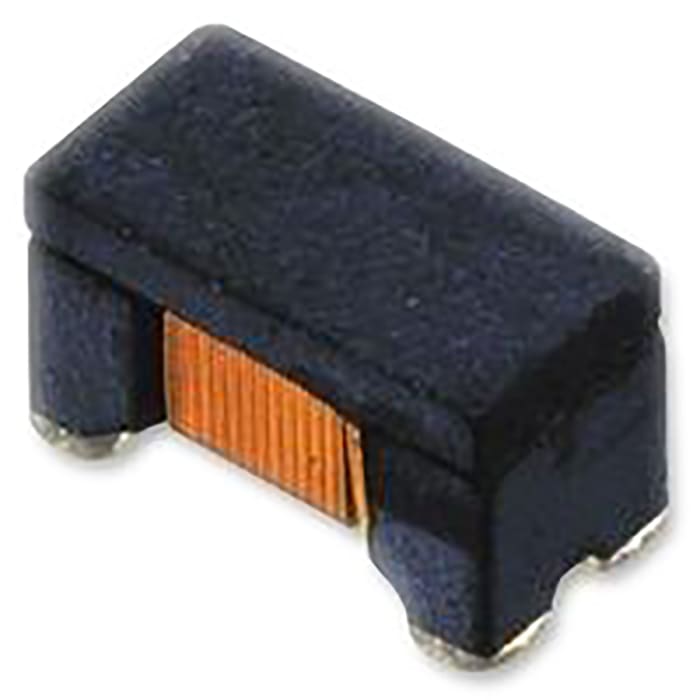

Inductance bobinée CMS série DLW31S Murata
Documents techniques
Spécifications
Brand
MurataSérie
DLW31S
Dimensions
3.2 x 1.6 x 1.9mm
Boîtier
1206
Longueur
3.2mm
Hauteur
1.9mm
Température de fonctionnement maximum
+85°C
Profondeur
1.6mm
Température d'utilisation minimum
-40°C
Pays d'origine
Japan
Détails du produit
Inductances à mode commun CMS Murata série 1206 DLW31S
La série DLW31S permet la suppression de bruits sans distorsion sur des lignes de transmission de données à haute vitesse.
Impédance de mode commun élevée à haute fréquence.
Applications: Lignes USB de PC , équipement périphériques , lignes LVDS de PCs ou d'écrans LCD.
DLP31S series common mode choke coil chips with high impedance in a small package. The DLP31S series utilise ferrite material technology and film processing technology to give excellent performance at high frequency ranges and is suitable for differential signal line application.
Small size, low profile, SMD. 3.2x1.6x1.15mm (Tolerance: +-0.15mm)
High common mode impedance (550 ohm at 100MHz typ.) in small size
Suppresses high frequency noise that was unable to be suppressed with existing common mode choke coils
Suitable for differential signal lines like USB, because DLP31S does not provide distortion to high speed signal transmission due to its high coupling (coupling coefficient: 0.98 min.)
Applications
USB lines of PCs, peripheral equipment
LVDS lines of Note-PCs, LCDs
USB lines of digital AV equipment such as digital cameras
Murata SMD Common Mode Chokes
Prix sur demande
Each (In a Bag of 10) (hors TVA)
10
Prix sur demande
Each (In a Bag of 10) (hors TVA)
Les informations sur le stock sont temporairement indisponibles.
10
Les informations sur le stock sont temporairement indisponibles.
